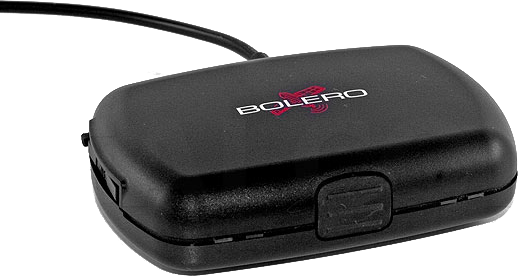

Falcom Bolero LT - Automotive Vehicle Locations solutions

  • Communication via Quad Band GSM (SMS, Data, GPRS, TCP/IP, E-mail)
  • High Sensivity Satellite Navigation (50 channel u-blox 5 engine)
  • Fully customizable behaviour
  • Autonomous operation
  • Car Security and Recovery / Thief Alert / Motion Detection
  • Online Tracking / Drivers Logbook/History
  • Territory Management / Geofencing
  • Remote administration & firmware update
  • Fully approved (FCC, PTCRB, e1, CE)
  • Internal antennas





GSM/GPRS core TELIT GE864-Quad module
850/900/1800/1900 MHz
GPRS class 10, class B
TCP/IP (accessible via PFAL commands)
GPS core 50 channel u-blox 5 engine
A-GPS online/offline support
Protocols: NMEA, GGA, GGL, GSA, GSV, RMC, WGS-84
Accuracy:
Position < 2.5 m
SBAS < 2 m
Acquisition:
TTFF hot start: < 1 s average
TTFF warm satart: < 29 s average
TTFF cold start: < 29 s average
Sensitivity:
Acquisition: -160 dBm
Tracking: -160 dBm (12 dBHz)
Cold start: -144 dBm
Limits:
Velocity: 500 m/s (972 knots)
Altitude: 50.000 m
Processor core ARM7/TDMI
Memory: 8 MB Flash / 2 MB RAM
Electrical characteristics Power: +10,8 V to +32 V DC
Backup battery
Physical characteristics Dimensions (L x W x H): 85 x 56 x 20 mm
Weight: approx. 90 g
Temperature range Storage: -40 °C to +90 °C
Operating: -40 ° to +85 °C
GSM: -30 °C to +80 °C
Battery option: -20 °C to +60 °C
Charging: 0 ° to +45 °C
Discharging: -20 ° to +60 °C
Motion sensor 3-axis motion sensor
Interfaces 2 IOs - 1 configurable digital/analoge input
with open collector output (100 mA)
- 1 digital input (IGN)
RS232 (RX, TX V24 level)
SIM card reader for 1,8/3 V SIM cards
3 programmable LEDs
1 programmable button
